Automotive camera lenses systems have become a standard feature for all cars in the automotive industry. The use of automotive camera lens systems not only save lifes but also avoid collisions that cause millions of dollar in automotive repairs every year. The latest development of automotive multiple camera systems as well as fisheye camera lenses that eliminate driver side blind spots further improve the safety of car drivers, passengers as well as pedestrians. AWI Industries (USA) Inc. supplies a wide range of automotive camera lenses and fisheye lenses for use in different types of sedans, sport utility vehicles (SUVs), trucks and marine vehicles. We also can custom made automotive camera lenses in accordance with customers' specifications. Special features such as water resistant lenses can also be made upon request. The followings are list of our standard lenses designed for vehicular camera system applications. In addition, there are other automobile lenses currently under development. We will constantly update the list of our standard lenses in coming months.
|
AWI
STANDARD AUTOMOTIVE REAR VIEW CAMERA LENS LIST |
|||||||||||||
|
AWI P/N |
Performance |
CMOS Size |
Focal Length (mm) |
Flange Back (mm) |
Lens Construction |
IR Filter |
F No. |
Angle Field of View |
TTL (mm) |
Thread Type |
Remarks |
||
|
V |
H |
D |
|||||||||||
|
E19138-1 |
1.5MEGA |
1/3.6" |
1.40 |
2.27 |
2G3P |
Included |
2.80 |
97° |
130° |
161° |
11.50 |
M8~M12 * |
Waterproof Lens |
|
E19138-2 |
1.5MEGA |
1/3.6" |
1.40 |
2.27 |
2G3P |
Included |
2.80 |
97° |
130° |
161° |
11.50 |
M8~M12 * |
|
|
E19138-3 |
1.5MEGA |
1/3.7" |
1.34 |
2.10 |
2G3P |
Included |
2.00 |
103.1° |
130.3° |
160° |
11.63 |
M8~M12 * |
Waterproof Lens |
|
E19138-4 |
2MEGA, HD |
1/4" |
2.30 |
2.27 |
2G3P |
Included |
2.20 |
69.8° |
98.1° |
140° |
11.58 |
M8~M12 * |
|
|
E19138-5 |
2MEGA, HD |
1/4" |
2.48 |
2.96 |
2G3P |
Included |
2.20 |
64.5° |
89.6° |
121.5° |
11.49 |
M8~M12 * |
|
|
E19138-6 |
1.5MEGA, HD |
1/4" |
2.60 |
3.96 |
4G |
Included |
2.00 |
61.2° |
84.7° |
112° |
19.55 |
M12X0.5 |
|
|
E19138-7 |
1MEGA, HD |
1/3" |
2.90 |
2.07 |
4G |
Included |
2.00 |
64.9° |
89.9° |
120.3° |
20.60 |
M12X0.5 |
|
|
E19138-8 |
1.5MEGA, HD |
1/4" |
1.68 |
3.30 |
5G |
Included |
2.50 |
100° |
130° |
170° |
18.40 |
M8X0.5 |
|
|
E19138-9 |
1.5MEGA, HD |
1/6" |
1.57 |
1.50 |
2G3P |
Included |
2.00 |
51° |
96.5° |
116° |
18.30 |
M12X0.5 |
|
|
E19138-10 |
2MEGA HD |
1/4" |
2.40 |
2.87 |
5G |
Included |
1.80 |
58° |
105° |
122° |
22.10 |
M12X0.5 |
|
|
E19138-11 |
2MEGA, F-HD |
1/2.9" |
2.30 |
3.30 |
2G3P |
Included |
2.00 |
62.5° |
108° |
124° |
13.85 |
M9X0.5 |
|
|
E19138-12 |
2MEGA, F-HD |
1/2.8" |
3.20 |
5.18 |
4G |
Included |
2.00 |
60.64° |
102° |
125° |
20.82 |
M12X0.5 |
|
|
E19138-13 |
2MEGA, F-HD |
1/2.8" |
3.00 |
3.00 |
6G |
Included |
1.80 |
64.8° |
110° |
126° |
20.80 |
M12X0.5 |
|
|
E19138-14 |
1.5MEGA HD |
1/2.8" |
2.90 |
2.90 |
4G |
Included |
2.00 |
66.4° |
106° |
124° |
20.60 |
M12X0.5 |
|
|
E19138-15 |
1MEGA, HD |
1/3" |
2.40 |
2.40 |
6G |
Included |
2.50 |
87.8° |
121.3° |
161.7° |
18.05 |
M12X0.5 |
|
|
E19138-16 |
1.3MEGA, HD |
1/3" |
6.00 |
6.00 |
4G |
Included |
2.40 |
32° |
43° |
54° |
19.13 |
M12X0.5 |
|
|
E19138-17 |
2MEGA, F-HD |
1/2.7" |
6.00 |
6.74 |
6G |
Included |
2.00 |
31° |
57° |
66° |
21.84 |
M12X0.5 |
|
1) Special custom designed CMOS/CCD lens available upon Request
2)*Size of barrel mounting screw thread can be changed in accordance with customer's specifications
Automotive Camera Lenses and Marine Vehicle Camera Lenses |
||||||||||||
P/N |
Sensor size |
Sensor type |
EFL (mm) ±5% |
BFL (mm) ±5% |
f # |
FOV (D) |
Diameter (mm) |
Length (mm) |
Flange Back Length (mm) |
Barrel mount thread |
IR filter |
Recommended application |
E19494-1 |
1/3" CMOS |
1.3MP |
1.20 |
1.64 |
2.4 |
125° |
18.80 |
12.65 |
1.28 |
M12X0.5 |
No |
Wide angle camera |
E19494-2 |
1/4"CCD |
VGA |
1.68 |
3.60 |
2.5 |
94.5° |
14.90 |
14.97 |
3.40 |
M12X0.5 |
No |
Rear view camera |
E19494-3 |
1/4" CCD |
VGA |
1.78 |
3.80 |
2.0 |
89.5° |
14.80 |
17.75 |
3.42 |
M12X0.5 |
No |
Rear view camera |
E19494-4 |
1/4" CMOS |
1.3MP |
1.80 |
2.46 |
2.4 |
92.6° |
18.80 |
12.80 |
1.26 |
M10X0.5 |
Yes |
Back-up camera |
E19494-5 |
1/3" CMOS |
1.3MP |
1.89 |
3.46 |
2.4 |
82.4° |
18.80 |
11.80 |
2.25 |
M10X0.5 |
Yes |
Back-up camera |
E19494-6 |
1/3" CMOS |
VGA |
2.45 |
4.92 |
2.5 |
91.1° |
14.00 |
15.87 |
4.74 |
M10X0.5 |
No |
Front view camera or dash board camera |
1/3" CCD |
81.4° |
|||||||||||
1/4" CCD |
59.3° |
|||||||||||
E19494-7 |
1/3"CCD |
3MP |
2.75 |
4.24 |
2.5 |
72° |
14.00 |
12.78 |
2.67 |
M12X0.5 |
Yes |
Front view camera or dash board camera |
E19494-8 |
1/2.7" CMOS |
3MP |
2.90 |
4.60 |
2.0 |
63.1° |
14.00 |
14.94 |
3.38 |
M10X0.5 |
Yes |
Dash board camera |
1/3" CCD |
70.5° |
|||||||||||
1/4" CCD |
52.3° |
|||||||||||

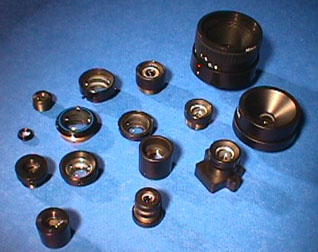

CCD (Charge Couple Device) Lenses are commonly used in robotic or machine image systems. The light sensitive silicon wafer inside the CCD chip reacts to incoming light, giving off electrons. The electrons are then collected in small wells called pixels. And the final image is composed of hundreds to millions of pixels.
|
A.W.I. standard CCD lenses
(custom sizes/material available upon request) |
|||||||||||
|
Part
Number |
Sensor
Size |
Effective
Focal Length (mm) |
Back
Focal Length (mm) |
F
Number |
Field
of Vision (Diagonal) |
Distortion |
Lumination
Intesnsity @ 1.0 Field |
Diameter
(mm) |
Length
(mm) |
Flange
Back Length (mm) |
Barrel
Mount Thread |
|
E11474-1 |
4 |
4 |
5.64 |
2 |
53 |
-8.00% |
64.00% |
14 |
15.3 |
4.84 |
M12xP0.5 |
|
E11474-2 |
4.8 |
4 |
5.64 |
2.5 |
68.7 |
-12.00% |
46.50% |
14 |
15.3 |
4.84 |
M12xP0.5 |
|
E11474-3 |
4.8 |
4 |
5.64 |
2 |
68.7 |
-12.00% |
46.50% |
14 |
15.8 |
4.84 |
M12xP0.5 |
|
E11474-4 |
4.8 |
4 |
5.64 |
2 |
68.7 |
-12.00% |
46.50% |
14 |
15.8 |
4.84 |
M12xP0.5 |
|
E11474-5 |
4.8 |
4 |
5.64 |
2 |
68.7 |
-12.00% |
46.50% |
14 |
15.8 |
4.84 |
M12xP0.5 |
|
E11474-6 |
4.8 |
4 |
5.64 |
2 |
68.7 |
-12.00% |
46.50% |
14 |
15.8 |
4.84 |
M12xP0.5 |
|
E11474-7 |
6 |
4 |
5.64 |
2 |
84.3 |
-19.00% |
30.20% |
14 |
15.8 |
4.84 |
M12xP0.5 |
|
E11474-8 |
6 |
4 |
5.64 |
1.8 |
84.3 |
-19.00% |
30.20% |
14 |
15.8 |
4.84 |
M12xP0.5 |
|
E11474-9 |
6 |
4 |
5.64 |
2 |
84.3 |
-19.00% |
30.20% |
14 |
15.8 |
4.84 |
M12 |
|
E11474-10 |
6 |
4 |
5.64 |
2 |
84.3 |
-19.00% |
30.20% |
14 |
17.3 |
3.4 |
M12 |
|
E11474-11 |
6 |
4 |
5.64 |
2 |
84.3 |
-19.00% |
30.20% |
14 |
17.3 |
3.4 |
M12 |
|
E11474-12 |
6 |
4 |
5.64 |
2 |
84.3 |
-19.00% |
30.20% |
14 |
17.3 |
3.4 |
M12 |
|
E11474-13 |
6.3 |
6 |
6.85 |
2 |
56.1 |
-6.00% |
60.70% |
14 |
14.4 |
6.3 |
M12 |
|
E11474-14 |
6.3 |
6 |
6.85 |
1.8 |
56.1 |
-6.00% |
60.70% |
14 |
14.4 |
6.3 |
M12 |
|
E11474-15 |
6.3 |
6 |
6.85 |
1.8 |
56.1 |
-6.00% |
60.70% |
14 |
17.1 |
6.3 |
M12 |
|
E11474-16 |
6.3 |
6 |
6.85 |
1.8 |
56.1 |
-6.00% |
60.70% |
14 |
14.4 |
6.3 |
M12 |
|
E11474-17 |
6.3 |
6 |
6.85 |
2 |
56.1 |
-6.00% |
60.70% |
14 |
14.4 |
6.3 |
M12 |
|
E11474-18 |
6 |
5.5 |
5.51 |
5 |
70.5 |
n/a |
44.50% |
14 |
6 |
3.18 |
M10 |
|
E11474-19 |
6 |
5.5 |
5.51 |
3.5 |
70.5 |
n/a |
44.50% |
14 |
6 |
3.18 |
M12 |
|
E11474-20 |
6 |
5.5 |
5.51 |
5 |
70.5 |
n/a |
44.50% |
14 |
6 |
3.18 |
M12 |
|
E11474-21 |
6 |
5.5 |
5.51 |
5 |
70.5 |
n/a |
44.50% |
M12 |
4.6 |
4.2 |
M12 |
|
E11474-22 |
6 |
3.7 |
3.85 |
4 |
91.8 |
n/a |
23.50% |
14 |
4.3 |
2.6 |
M10 |
|
E11474-23 |
6 |
3.7 |
3.85 |
4 |
91.8 |
n/a |
23.50% |
14 |
4.3 |
2.6 |
M12 |
|
E11474-24 |
6 |
3.7 |
3.85 |
4 |
91.8 |
n/a |
23.50% |
M12 |
4.3 |
2.6 |
M12 |
|
E11474-25 |
6 |
5.6 |
4.2 |
2 |
61.5 |
-9.00% |
54.50% |
10 |
6.5 |
3.5 |
M8.0 |
|
E11474-26 |
6 |
5.6 |
4.2 |
2 |
61.5 |
-9.00% |
54.50% |
12 |
6.6 |
3.5 |
M8.0 |
|
E11474-27 |
6 |
5.6 |
4.2 |
1.8 |
61.5 |
-9.00% |
54.50% |
10 |
6.5 |
3.5 |
M8.0 |
|
E11474-28 |
6.5 |
5.6 |
4.2 |
1.8 |
65.1 |
-10.20% |
50.50% |
14 |
8.8 |
2.1 |
M12 |
|
E11474-29A |
6 |
6 |
8.85 |
2 |
56 |
-8.00% |
59.50% |
14 |
15.8 |
8.3 |
M12 |
|
E11474-29B |
7.5 |
6 |
8.85 |
2 |
64 |
-11.00% |
59.50% |
14 |
15.8 |
8.3 |
M12 |
|
E11474-30A |
6 |
6 |
8.85 |
1.8 |
56 |
-8.00% |
59.50% |
14 |
15.8 |
8.3 |
M12 |
|
E11474-30B |
7.5 |
6 |
8.85 |
1.8 |
64 |
-11.00% |
59.50% |
14 |
15.8 |
8.3 |
M12 |
|
E11474-31A |
6 |
6 |
8.85 |
1.8 |
56 |
-8.00% |
59.50% |
14 |
15.8 |
8.3 |
M12 |
|
E11474-31B |
7.5 |
6 |
8.85 |
1.8 |
64 |
-11.00% |
59.50% |
14 |
15.8 |
8.3 |
M12 |
|
E11474-32 |
6 |
3.6 |
5.6 |
2 |
95 |
-20.20% |
20.80% |
14 |
15.7 |
5 |
M12 |
|
E11474-33 |
6 |
3.6 |
5.6 |
1.8 |
95 |
-20.20% |
20.80% |
14 |
15.7 |
5 |
M12 |
|
E11474-34 |
6 |
2.5 |
5.52 |
2 |
123.6 |
-35.70% |
5.00% |
14 |
19.5 |
4.77 |
M12 |
|
E11474-35 |
6 |
2.5 |
5.52 |
1.8 |
123.6 |
-35.70% |
5.00% |
14 |
19.5 |
4.77 |
M12 |
|
E11474-36A |
6 |
6.2 |
4.66 |
2.8 |
52.3 |
-1.50% |
64.50% |
14 |
6.45 |
4.1 |
M12 |
|
E11474-36B |
5.5 |
6.2 |
4.66 |
2.8 |
52.3 |
-1.50% |
64.50% |
14 |
6.45 |
4.1 |
M12 |
|
E14006-1 |
8 |
10.02 |
6.356 |
3 |
43.98 |
11.13% |
n/a |
14 |
11.4 |
3.51 |
M12 |
|
E14006-2 |
6 |
2.69 |
5.1 |
2 |
140 |
-39.60% |
n/a |
18 |
18.14 |
4.7 |
M12 |
|
E14006-3 |
6 |
3.1 |
5.3 |
2.4 |
120 |
-44.20% |
n/a |
14 |
16.37 |
4.66 |
M12 |
|
E14006-4 |
3.4 |
3.47 |
2.94 |
2.8 |
56 |
-7.00% |
n/a |
9 |
6.87 |
2.04 |
M12 |
|
E14006-4-1 |
3.4 |
3.47 |
2.94 |
2.8 |
56 |
-7.00% |
n/a |
9 |
4.46 |
2.04 |
M12 |
|
E14006-4-2 |
3.4 |
3.47 |
2.94 |
2.8 |
56 |
-7.00% |
n/a |
14 |
19.83 |
2.04 |
M12 |
|
E14006-4-3 |
3.4 |
3.47 |
2.94 |
2.8 |
56 |
-7.00% |
n/a |
14 |
13.76 |
2.04 |
M12 |
|
E14006-4-4 |
3.4 |
3.47 |
2.94 |
2.8 |
56 |
-7.00% |
n/a |
7.24 |
4.46 |
2.04 |
M9.0 |
|
E14006-9 |
6 |
3.6 |
4.9 |
2.4 |
92 |
-27.30% |
n/a |
14 |
15.9 |
4.31 |
M12 |
|
E14006-10 |
6 |
3.6 |
4.45 |
2 |
92 |
-31.60% |
n/a |
14 |
15.45 |
5 |
M12 |
|
E14006-11 |
6.0/4.0 |
3.8 |
3.29 |
2 |
92,68 |
-22.70% |
n/a |
12 |
8.1 |
2.05 |
M12 |
|
E14006-12 |
6.0/4.0 |
3.8 |
3.29 |
2 |
92,68 |
-22.70% |
n/a |
9 |
8.1 |
2.05 |
M12 |
|
E14006-13 |
6.0/4.0 |
3.8 |
3.53 |
2 |
92,68 |
-22.70% |
n/a |
12 |
8.1 |
2.27 |
M12 |
|
E14006-14 |
6.0/4.0 |
3.8 |
3.53 |
2 |
92,68 |
-22.70% |
n/a |
9 |
8.1 |
2.27 |
M12 |
|
E14006-15 |
6.0/4.0 |
3.8 |
3.53 |
2 |
92,68 |
-22.70% |
n/a |
12 |
8.1 |
2.27 |
M12 |
|
E14006-16 |
6.0/4.0 |
3.9 |
3.53 |
2 |
92,68 |
-22.70% |
n/a |
12 |
8.2 |
2.2 |
M12 |
|
E14006-17 |
6.0/4.0 |
3.9 |
3.53 |
2 |
92,68 |
-22.70% |
n/a |
12 |
8.2 |
2.2 |
M12 |
|
E14006-18 |
4 |
4.35 |
4.54 |
2.4 |
50 |
-7.50% |
n/a |
12 |
5.3 |
3.63 |
M12 |
|
E14006-19 |
6.0/4.0 |
4.3 |
6.47 |
2 |
78,60 |
-21.50% |
n/a |
14 |
17.1 |
4.17 |
M12 |
|
E14006-20 |
6.0/4.0 |
4.39 |
3.14 |
2 |
73,62.4 |
-15.30% |
n/a |
12 |
8.26 |
2.59 |
M12 |
|
E14006-21 |
6.0/4.0 |
4.39 |
3.14 |
2 |
73,62.4 |
-15.30% |
n/a |
12 |
8.26 |
2.59 |
M12 |
|
E14006-22 |
6.0/4.0 |
4.39 |
3.14 |
2 |
73,62.4 |
-15.30% |
n/a |
12 |
8.26 |
2.59 |
M12 |
|
E14006-23 |
6.0/4.0 |
4.39 |
3.38 |
2 |
73,62.4 |
-15.30% |
n/a |
12 |
8.96 |
2.2 |
M12 |
|
E14006-24 |
6.0/4.0 |
4.39 |
3.38 |
2 |
73,62.4 |
-15.30% |
n/a |
12 |
8.96 |
2.2 |
M12 |
|
E14006-25 |
4 |
4.63 |
4.95 |
2.8 |
56 |
-5.78% |
n/a |
14 |
12.33 |
2.5 |
M12 |
|
E14006-26 |
6.0/4.0 |
5.58 |
5.84 |
2.4 |
60,45.6 |
-7.70% |
n/a |
12 |
5.3 |
4.17 |
M9.0 |
|
E14006-27 |
6.0/4.0 |
5.58 |
5.84 |
2.4 |
60,45.6 |
-7.70% |
n/a |
12 |
7.3 |
1.61 |
M12 |
|
E14006-28 |
6.0/4.0 |
5.58 |
5.84 |
2.4 |
60,45.6 |
-7.70% |
n/a |
9 |
5.3 |
4.17 |
M9 |
|
E14006-29 |
6 |
6 |
6.46 |
2 |
60 |
-3.32% |
n/a |
14 |
14.4 |
4.95 |
M12 |
|
E14006-30 |
6 |
6.6 |
8.17 |
1.8 |
53.7 |
-10.14% |
n/a |
14 |
16.3 |
7.22 |
M12 |
|
E14006-31 |
6 |
6.5 |
7.96 |
2.4 |
55 |
-10.57% |
n/a |
14 |
11.6 |
3.7 |
M12 |
|
E14006-32 |
6 |
7.09 |
5.19 |
1.8 |
59.9 |
-12.30% |
n/a |
14 |
14.41 |
3.93 |
M12 |
|
E14006-33 |
6 |
7.07 |
2.95 |
2.4 |
52 |
-3.26% |
n/a |
12 |
7.99 |
1.55 |
M12 |
|
E14006-34 |
6 |
7.07 |
2.95 |
2.4 |
52 |
-3.26% |
n/a |
14 |
9.3 |
1.55 |
M12 |
|
E14006-35 |
6 |
7.07 |
2.95 |
2.4 |
52 |
-3.26% |
n/a |
14 |
13.45 |
1.55 |
M12 |
|
E14006-36 |
6 |
7.27 |
4.41 |
2.8 |
48.8 |
-2.73% |
n/a |
12 |
9.61 |
2.45 |
M12 |
|
E14006-37 |
6.72 |
7.27 |
9.28 |
2.4 |
55 |
-10.49% |
n/a |
14 |
13.29 |
2.81 |
M12 |
|
E14006-38 |
7.5 |
7.9 |
10.19 |
2.4 |
55 |
-10.74% |
n/a |
14 |
13.3 |
3.78 |
M12 |
|
E14006-39 |
6 |
7.8 |
5.09 |
2 |
40 |
-4.21% |
n/a |
14 |
13.5 |
4.46 |
M12 |
|
E14006-40 |
8.5 |
8.7 |
7.6 |
2.8 |
53.13 |
-0.96% |
n/a |
14 |
15.33 |
6.4 |
M12 |
|
E11887-1A |
6 |
2.1 |
5.6 |
2 |
150 |
n/a |
n/a |
n/a |
19.1 |
n/a |
n/a |
|
E11887-1B |
4 |
2.1 |
5.6 |
2 |
120 |
n/a |
n/a |
n/a |
19.1 |
n/a |
n/a |
|
E11887-2A |
6 |
2.5 |
5.5 |
2 |
130 |
n/a |
n/a |
n/a |
19.5 |
n/a |
n/a |
|
E11887-2B |
4 |
2.5 |
5.5 |
2 |
100 |
n/a |
n/a |
17 |
19.5 |
n/a |
n/a |
|
E11887-3A |
6 |
2.9 |
5.5 |
2 |
120 |
n/a |
n/a |
n/a |
15.3 |
n/a |
n/a |
|
E11887-3B |
4 |
2.9 |
5.5 |
2 |
96 |
n/a |
n/a |
n/a |
15.3 |
n/a |
n/a |
|
E11887-4A |
6 |
4.3 |
5.58 |
1.8 |
78 |
n/a |
n/a |
14 |
14.1 |
4.52 |
M12 |
|
E11887-4B |
4 |
4.3 |
5.58 |
1.8 |
60 |
n/a |
n/a |
14 |
14.1 |
4.52 |
M12 |
|
E11887-5A |
6 |
3.7 |
3.5 |
4.5 |
90.7 |
n/a |
n/a |
n/a |
4.3 |
n/a |
n/a |
|
E11887-5B |
4 |
3.7 |
3.5 |
4.5 |
68 |
n/a |
n/a |
n/a |
4.3 |
n/a |
n/a |
|
E11887-6 |
6 |
5.5 |
4.5 |
4.5 |
50 |
n/a |
n/a |
n/a |
4.3 |
n/a |
n/a |
|
E11887-7A |
6 |
3.7 |
5.73 |
2 |
92.7 |
n/a |
n/a |
14 |
14.2 |
5.58 |
M12 |
|
E11887-7B |
4 |
3.7 |
5.73 |
2 |
69.6 |
n/a |
n/a |
14 |
14.2 |
5.58 |
M12 |
|
E11887-7C |
1/5-in |
3.7 |
5.73 |
2 |
57.3 |
n/a |
n/a |
14 |
14.2 |
5.58 |
M12 |
|
E11887-8* |
6 |
6 |
4.5 |
1.8 |
60 |
<7% |
n/a |
14 |
11.7 |
2.7 |
M12 |
|
E11887-9 |
6 |
6 |
8.1 |
1.8 |
60 |
n/a |
n/a |
n/a |
15.2 |
n/a |
n/a |
|
E11887-10 |
6 |
8 |
5.2 |
2 |
40 |
n/a |
n/a |
n/a |
13.8 |
n/a |
n/a |
|
E11887-11 |
6 |
12 |
6.9 |
2 |
26 |
n/a |
n/a |
n/a |
31.2 |
n/a |
n/a |
|
E11887-12 |
6 |
16 |
7.5 |
1.6 |
19 |
n/a |
n/a |
n/a |
34.7 |
n/a |
n/a |
|
E11887-13 |
6 |
4 |
5.7 |
2 |
81 |
n/a |
n/a |
n/a |
19.1 |
n/a |
n/a |
|
E11887-14 |
6 |
6 |
3.6 |
1.8 |
60.2 |
n/a |
n/a |
n/a |
29.7 |
n/a |
n/a |
|
E11887-15 |
6 |
8 |
7 |
2.8 |
40 |
n/a |
n/a |
n/a |
30.2 |
n/a |
n/a |
|
E11887-16A |
4 |
3.9 |
4.32 |
2.8 |
64.7 |
n/a |
n/a |
n/a |
4 |
n/a |
n/a |
|
E11887-16B |
1/5-in |
3.9 |
4.32 |
2.8 |
52.1 |
n/a |
n/a |
n/a |
4 |
n/a |
n/a |
|
E11887-17A |
4 |
3.9 |
4.32 |
2.8 |
64.7 |
n/a |
n/a |
14 |
11.5 |
1.99 |
M12 |
|
E11887-17B |
1/5-in |
3.9 |
4.32 |
2.8 |
52.1 |
n/a |
n/a |
14 |
11.5 |
1.99 |
M12 |
|
E11887-18A |
6 |
5.2 |
5.755 |
2.8 |
64.8 |
-9.00% |
n/a |
14 |
14.38 |
3.52 |
M12 |
|
E11887-18B |
4 |
5.2 |
5.755 |
2.8 |
48.9 |
-4.80% |
n/a |
14 |
14.38 |
3.52 |
M12 |
|
E11887-19* |
4 |
6.7 |
5.65 |
2.4 |
37.88 |
n/a |
n/a |
n/a |
13.8 |
n/a |
n/a |
|
E11887-20* |
4 |
6.7 |
5.65 |
2.4 |
37.88 |
n/a |
n/a |
n/a |
11.94 |
n/a |
n/a |
* = can be used as both CMOS and CCD type camera
|
Part
Number |
Sensor
Size |
Effective
Focal Length (mm) |
Back
Focal Length (mm) |
F
Number |
Field
of Vision (Diagonal) |
Distortion |
Lumination
Intensity @1.0 Field |
Diameter
(mm) |
Length
(mm) |
Flange
Back Length (mm) |
Barrel
Mount Thread |
|
E15584-1 |
1/3" |
2.30 |
5.48 |
2.0 |
156.0° |
n/a |
n/a |
15.0 |
14.99 |
n/a |
M12
X 0.5P |
|
E15584-2 |
1/3" |
2.50 |
4.60 |
2.5 |
130.0° |
n/a |
n/a |
17.0 |
20.10 |
n/a |
M12
X 0.5P |
|
E15584-3 |
1/3" |
2.90 |
5.20 |
2.0 |
120.0° |
n/a |
n/a |
15.0 |
18.00 |
n/a |
M12
X 0.5P |
|
E15584-4 |
1/3" |
3.00 |
5.75 |
2.0 |
115.0° |
n/a |
n/a |
14.0 |
15.10 |
n/a |
M12
X 0.5P |
|
E15584-5 |
1/3" |
3.60 |
5.56 |
2.0 |
92.0° |
n/a |
n/a |
14.0 |
16.10 |
n/a |
M12
X 0.5P |
|
E15584-6 |
1/3" |
3.94 |
5.64 |
2.0 |
94.0° |
n/a |
n/a |
14.0 |
16.20 |
n/a |
M12
X 0.5P |
|
E15584-7 |
1/3" |
4.30 |
3.25 |
1.8 |
78.0° |
n/a |
n/a |
15.0 |
13.80 |
n/a |
M12
X 0.5P |
|
E15584-8 |
1/3" |
6.05 |
8.00 |
1.8 |
58.0° |
n/a |
n/a |
15.0 |
15.26 |
n/a |
M12
X 0.5P |
|
E15584-9 |
1/3" |
6.50 |
2.43 |
2.8 |
51.0° |
n/a |
n/a |
14.0 |
9.73 |
n/a |
M12
X 0.5P |
|
E15584-10 |
1/3" |
8.00 |
5.80 |
2.5 |
38.6.° |
n/a |
n/a |
15.0 |
13.50 |
n/a |
M12
X 0.5P |
|
E15584-10B |
1/3" |
12.80 |
6.40 |
2.0 |
25.7° |
n/a |
n/a |
14.0 |
12.00 |
n/a |
M12
X 0.5P |
|
E15584-10C |
1/3" |
25.00 |
8.00 |
2.5 |
13.3° |
n/a |
n/a |
17 |
23.50 |
n/a |
M12
X 0.5P |
|
E15584-11 |
1/4" |
1.68 |
3.27 |
2.5 |
170.0° |
n/a |
n/a |
15 |
10.43 |
n/a |
M12
X 0.5P |
|
E15584-12 |
1/4" |
1.74 |
3.33 |
2.8 |
128.0° |
n/a |
n/a |
21 |
19.60 |
n/a |
M12
X 0.5P |
|
E15584-13 |
1/4" |
2.20 |
4.79 |
2.0 |
120.0° |
n/a |
n/a |
14 |
18.27 |
n/a |
M12
X 0.5P |
|
E15584-14 |
1/4" |
2.50 |
4.60 |
2.5 |
109.0° |
n/a |
n/a |
17 |
20.10 |
n/a |
M12
X 0.5P |
|
E15584-15 |
1/4" |
2.90 |
5.20 |
2.0 |
90.0° |
n/a |
n/a |
15 |
18.00 |
n/a |
M12
X 0.5P |
|
E15584-16 |
1/4" |
3.00 |
5.30 |
2.0 |
86.0° |
n/a |
n/a |
14 |
15.10 |
n/a |
M12
X 0.5P |
|
E15584-17 |
1/4" |
3.60 |
5.56 |
2.0 |
69.0° |
n/a |
n/a |
14 |
16.10 |
n/a |
M12
X 0.5P |
|
E15584-18 |
1/4" |
3.94 |
5.64 |
2.0 |
60.0° |
n/a |
n/a |
14 |
16.20 |
n/a |
M12
X 0.5P |
|
E15584-19 |
1/4" |
4.30 |
3.25 |
1.8 |
59.0° |
n/a |
n/a |
15 |
13.80 |
n/a |
M12
X 0.5P |
|
E15584-20 |
1/4" |
4.70 |
1.12 |
2.8 |
48.0° |
n/a |
n/a |
10 |
7.34 |
n/a |
M7.5
X 0.5P |
|
E15584-21 |
1/4" |
5.70 |
5.86 |
3.8 |
41.0° |
n/a |
n/a |
10 |
8.27 |
n/a |
M8.0
X 0.5P |
|
E15584-22 |
1/4" |
6.05 |
8.00 |
1.8 |
39.0° |
n/a |
n/a |
15 |
15.26 |
n/a |
M12
X 0.5P |
|
E15584-23 |
1/4" |
6.48 |
5.30 |
2.4 |
39.9° |
n/a |
n/a |
15 |
13.12 |
n/a |
M12
X 0.5P |
|
E15584-24 |
1/4" |
8.00 |
5.80 |
2.5 |
32.1° |
n/a |
n/a |
15 |
13.50 |
n/a |
M12
X 0.5P |
|
E15584-25 |
1/4" |
12.00 |
6.40 |
2.0 |
21.7° |
n/a |
n/a |
14 |
12.00 |
n/a |
M12
X 0.5P |
|
E15584-26HR |
1/4" |
6.00 |
7.60 |
2.0 |
60.0° |
n/a |
n/a |
14 |
15.30 |
n/a |
M
12 x 0.5P |
|
E15584-27HR |
1/3" |
8.00 |
6.60 |
2.0 |
43.0° |
n/a |
n/a |
15 |
13.30 |
n/a |
M12
x 0.5P |
|
E15584-28 |
1/2" |
10.60 |
6.12 |
2.8 |
44.0° |
n/a |
n/a |
15.0 |
19.52 |
n/a |
M12
x 0.5P |
|
E15584-29 |
1/2" |
10.40 |
7.51 |
2.8 |
43.0° |
n/a |
n/a |
14.0 |
16.44 |
n/a |
M12
x 0.5P |
|
E15584-30 |
1/2" |
35.00 |
15.80 |
2.0 |
13.0° |
n/a |
n/a |
25.0 |
39.30 |
n/a |
M12
x 0.5P |
|
E15584-31 |
1/2" |
50.00 |
8.00 |
2.5 |
9.2.° |
n/a |
n/a |
27.0 |
56.77 |
n/a |
M12
x 0.5P |

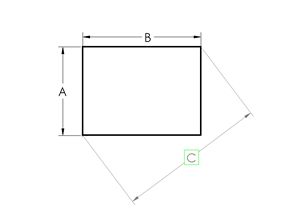

Image Size Definition:
|
Standard
CCD Sensor Size |
A |
B |
C |
|
1/7
inch |
1.97mm |
1.61mm |
2.54mm |
|
1/6
inch |
2.39mm |
1.80mm |
3.00mm |
|
1/5
inch |
2.85mm |
2.16mm |
3.58mm |
|
1/4
inch |
3.2mm |
2.4mm |
4.0mm |
|
1/3
inch |
4.8mm |
3.6mm |
6.0mm |
|
1/2
inch |
6.4mm |
4.8mm |
8.0mm |
|
2/3
inch |
8.8mm |
6.6mm |
11.0mm |
|
1
inch |
12.8mm |
9.6mm |
16.0mm |
Aspherics Ball
Lens Binoculars CCD Corner Cube
Lens Cylindrical Lens Fresnel Lens Lens
Assembly Micro Lens Optical Filter Plastic Lens Prism
Reflector Rod
Lens Special Lens
Home Optics Lasers Electronics NightStar Contact us
copyright ©
A.W.I. Industries (USA) Inc
Version 3.7
Designed by BCY
