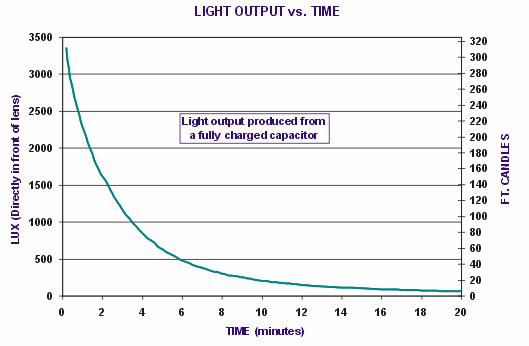

1) Light Output
2) Smoke Penetration
Smoke Penetration |
||
| Smoke Type | % Transmission @ 4 ft | %Transmission @ 8 ft |
| Paper | 36.7 | 14.4 |
| Leaves | 56.7 | 30.4 |
| Rubber Bands | 35.3 | 19.6 |
3) Hazadous Class 1 Gas Certifications
Meets all test criteria for MIL-STD-810F, Test Method 511.4: Military Standard Reliability Program. Gas Mixtures tested: Acetylene (Group A), Hydrogen (Group B), Ethylene (Group C), Hexane (Group D), Natural Gas (Group D), Aviation AV/ Gas 100 / 130.
[ Tests Performed by Aero Nav Laboratories ]
4) Electromagnetic Compatibility
Conforms to Council Directive 89/336/EC. Measured RF levels are far below limits for all frequencies.
[ Tests Performed by Labein Laboratories ]
5) Operating Temperature
Storage: -50°F (-45°C) to 140°F (60°C)
Operation: -40°F (-40°C) to 130°F (55°C).
[ Tests Performed by Hauser Laboratories ]
6) Corrosion Resistance
Operational after 3 days immersion in solutions of salt water, isopropyl alcohol, ammonia, phosphoric acid*, acetic acid*, drain cleaner*, Ajax*, motor oil and diesel fuel (* 10% solutions).
[ Tests Performed by Hauser Laboratories ]
7) Submersion Test
Operational at an ocean depth of 2210-ft (674m)
[ Equivalent pressure crush point:960 PSI ]
[ Tests Performed by Hauser Laboratories ]
8) Sound Emission
Overall A-Weighted Sound Power Level: 63.6 dB
| Num of units | Distance (ft) |
||||
| 1 | 10 | 100 | 1000 | 10000 | |
| 1 | 65 | 45 | 25 | 5 | 0 |
| 12 (squad) | 76 | 56 | 36 | 16 | 0 |
| 36 (platoon) | 81 | 61 | 41 | 21 | 1 |
| 108 (company) | 86 | 66 | 46 | 26 | 6 |
All values are A-Weighted Sound Pressure Levels and are predictions based on measured Overall A-Weighted Sound Power Levels of a single unit. For reference purposes, a pressure level of 40 is equivalent to an urban neighborhood at night far from roads. A pressure level of 20 is an empty recording studio.
9) Magnetic Field Strength
| @ 1ft. | @ 2ft. | @ 4ft. | @ 8ft | |
| Single Unit | ||||
| Axis 1 | 0.03 | 0.005 | 0.0005 | 0.00001 |
| Axis 2 | 0.06 | 0.007 | 0.0005 | 0.00001 |
| Axis 3 | 0.13 | 0.028 | 0.004 | 0.0005 |
| 1 Case (packed in alternating configuration): | ||||
| Axis 1 | 0.22 | 0.002 | 0.0001 | 0.00001 |
| Axis 2 | 0.006 | 0.001 | 0 | 0 |
| Axis 3 | 0.06 | 0.006 | 0.001 | 0.00001 |
Note: All values are in Guass. Axis 1 is parallel to the housing, Axis 2 is perpendicular to the housing, Axis 3 is perpendicular to the end of the light. For reference purposes, a field of 0.005 G deflects a compass needle by less than 1 degree.
[ Tests performed by Washington Laboratories ]
10) Weight
11 ounces (308 grams)
11) Length
10" ( 25.4cm)
