By definition, any curvature that is not spherical can be categorized as aspheric. The most common form of aspheric equation is as follows:

AWI Industries Aspheric Equation

where A1, A2, A3, A4... are constants.
C is the reciprocal of radius of curvature (1/R).
K is the conic constant.

The shape of the lens is given by plotting f(x) and rotate the 2D curve along the X axis:

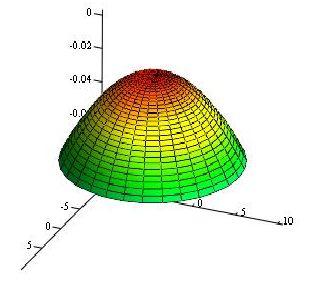

AWI Industries Aspheric Equation Plot AWI Industries Aspherics 3D plot

There are also other kinds of aspherics such as elliptical and parabolic

AWI Industries Aspherics equation

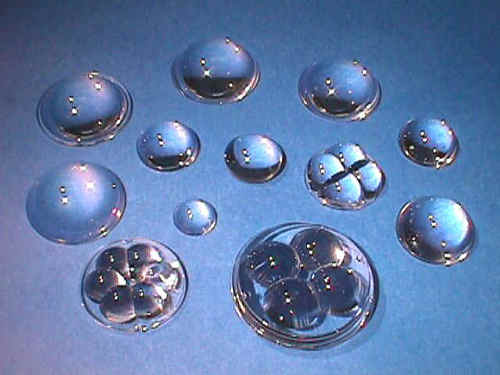

There are many different kinds of aspheric lens designs, they include aspheric-plano, aspheric-concave, aspheric-convex, bi-aspheric, or aspheric lens arrays.

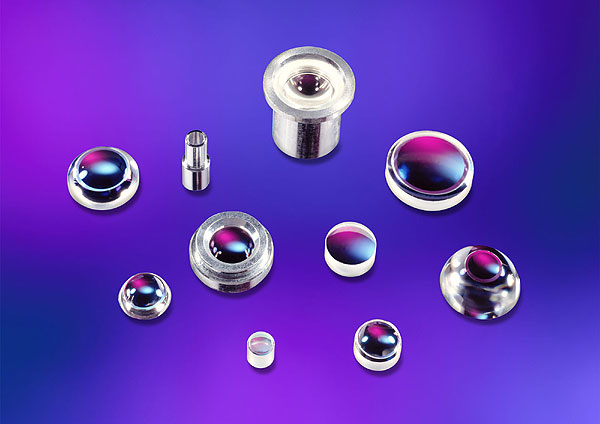

A.W.I. Industries (USA) Inc. manufactures and supplies both molded plastic and molded glass aspheric lenses. Our aspheric lenses range from diameter 1.6mm to diameter 150mm. We also supply on-axis and off-axis metal and glass parabolic mirrors using single point diamond turning (SPDT) process and "ground & polished" process.

A.W.I. also supplies small glass-replica aspheric laser collimating lenses and lens arrays for use in telecommunication, metrology, imaging, date storage and medical industries.

A.W.I. welcomes your inquries and will be glad to assist in the design, material selection, function, and manufacturability of your aspheric lens application.

AWI Industries Aspherics Lens AWI Industries Aspherics Lens

AWI Industries Aspherics Lens

AWI Industries Aspherics

Below is a table containing standard aspheric lenses that AWI supplies:

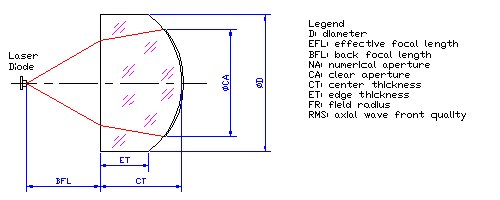

Part Number EFL  BFL  NA  CA  D CT ET WEIGHT FR RMS
  (mm) (mm) (mm) (mm) (mm) (mm) (mm) (g) (mm) (waves)
E15456-01 40.00 38.20 0.11 9.0 10.00 3.00 2.40 0.65 0.80 0.020
E15456-02 27.00 25.50 0.11 6.0 8.00 2.50 2.10 0.34 0.70 0.020
E15456-03 23.00 22.00 0.13 6.0 8.00 2.50 1.87 0.30 0.50 0.030
E15456-04 22.00 20.80 0.11 4.8 6.00 2.00 1.63 0.20 0.50 0.020
E15456-05 19.00 18.00 0.16 6.0 8.00 2.50 1.74 0.30 0.40 0.030
E15456-06 19.00 17.00 0.11 4.2 5.20 3.00 2.68 0.20 0.40 0.025
E15456-07 16.90 15.10 0.18 6.0 6.50 3.00 2.46 0.36 0.40 0.030
E15456-08 15.00 13.50 0.20 6.0 8.00 2.50 1.60 0.40 0.25 0.030
E15456-09 14.80 13.40 0.18 5.4 6.50 2.50 1.92 0.30 0.25 0.030
E15456-10 11.00 9.60 0.20 4.4 6.00 2.35 1.64 0.21 0.20 0.030
E15456-11 10.00 8.60 0.19 3.8 4.50 2.35 1.92 0.12 0.20 0.030
E15456-12 9.00 7.60 0.25 4.6 6.50 2.33 1.39 0.26 0.18 0.030
E15456-13 9.00 7.60 0.30 5.4 6.50 2.33 1.39 0.26 0.15 0.030
E15456-14 7.90 6.50 0.30 4.8 6.50 2.50 1.43 0.27 0.20 0.020
E15456-15 7.50 6.10 0.30 4.5 6.50 2.50 1.35 0.27 0.18 0.030
E15456-16 7.50 6.10 0.19 2.8 4.00 2.50 2.10 0.12 0.30 0.030
E15456-17 6.25 4.80 0.35 4.4 6.50 2.50 1.04 0.26 0.15 0.030
E15456-18 6.00 4.50 0.15 1.8 2.30 2.20 2.00 0.02 0.40 0.030
E15456-19 4.40 2.30 0.50 4.4 5.50 3.70 2.41 0.25 0.09 0.030
E15456-20 4.40 2.20 0.50 4.4 5.50 3.87 2.58 0.26 0.10 0.030
E15456-21 3.30 2.30 0.45 3.0 5.20 2.00 - 0.09 0.07 0.030
E15456-22 3.30 2.30 0.45 3.0 4.00 2.00 1.10 0.07 0.07 0.030
E15456-23 3.00 1.60 0.47 2.8 4.00 2.51 1.48 0.12 0.08 0.040
E15456-24 3.00 1.60 0.55 3.3 4.00 2.51 1.48 0.12 0.06 0.055
E15456-25 0.78 0.15 0.80 1.3 1.63 1.26 - 0.70 0.20 0.065
E15456-26 10.90 9.70 0.30 6.60 7.20 2.20 1.40 0.30 0.10 0.050
E15456-27 4.60 2.90 0.53 4.90 6.00 3.10 1.50 0.30 0.06 0.060
E15456-28 10.00 7.60 0.44 8.70 10.00 4.10 2.00 0.90 0.10 0.040
E15456-29 14.80 13.30 0.22 6.40 8.00 2.50 1.60 0.40 0.30 0.040
